Chang an antelope car air-conditioning system circuit diagram

Published:2011/10/20 2:31:00 Author:Rebekka | Keyword: Chang an antelope , air-conditioning system | From:SeekIC

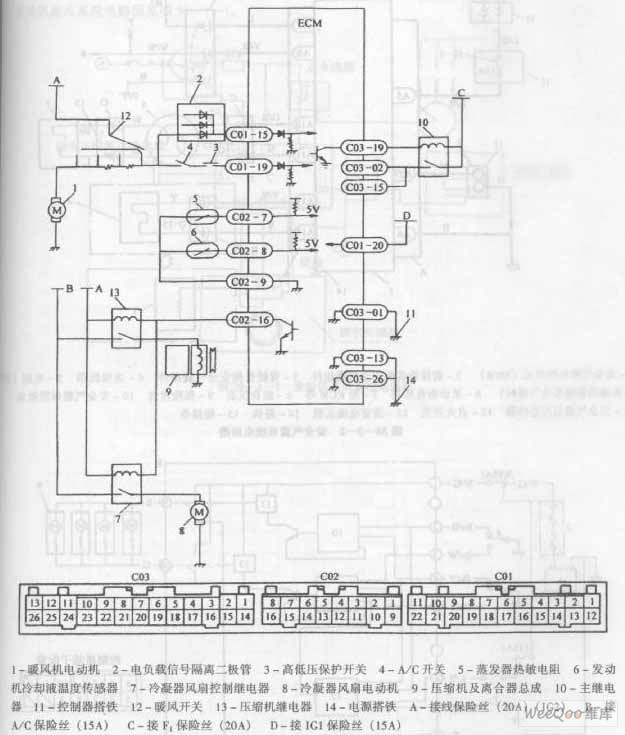

1. Heater motor 2. Electrical load signal isolation diode 3. High and low pressure protection switch 4.A / C switch 5. Evaporator thermistor 6. Engine coolant temperature sensor 7. Condenser fan control relay 8. Condenser the fan motor 9. Compressor and clutch assembly 10. Main relay 11. Controller Ground 12. Heater switch 13. Compressor relay 14. Power Ground A connects to fuse (20A) (IC2), B connects to A / C fuse (15A), C connects to F; fuse (20A), D connects to IG1 fuse (15A)
