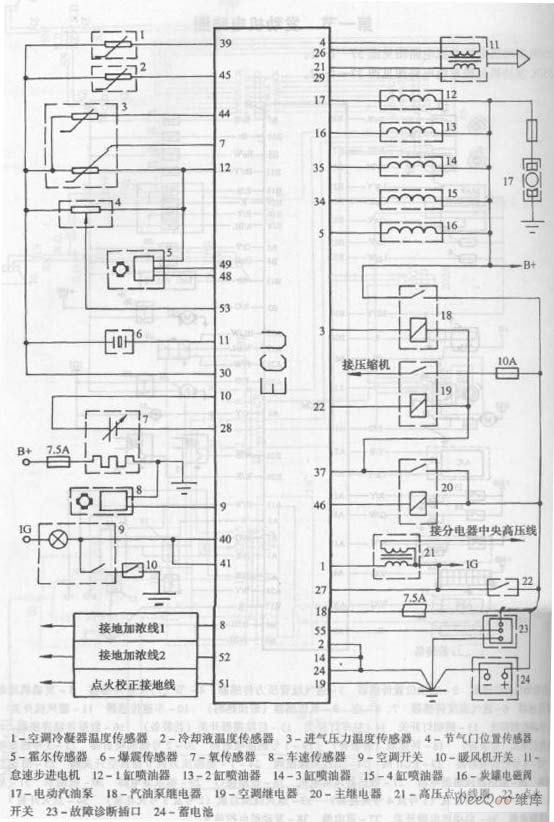

Chang an Star SUV 6350C engine control system circuit diagram

Published:2011/10/20 2:34:00 Author:Rebekka | Keyword: Chang an Star SUV, engine control system | From:SeekIC

1. Air conditioning condenser temperature sensor 2. Coolant Temperature Sensor 3. Inlet air pressure and temperature sensors 4. Throttle position sensor 5. Hall sensor 6. Knock sensor 7. Oxygen sensor 8. Speed sensor 9. Air conditioning switch 10. Heater switch 11. Idle stepper motor 12-1. Gang injector 13-2. Gang injector 14-3. Gang injector 15-4. Gang injector 16. solenoid valve 17. Electric Fuel Pump 18. Fuel pump relay 19. Air conditioning relay 20. main relay 21. High-voltage ignition coil 23. Fault diagnosis socket 24. Accumulator
