Car Turing Alarm (LD7208 Specific IC) Application Circuit

Published:2011/5/22 1:24:00 Author:Robert | Keyword: Car, Turing, Alarm, Specific IC, Application | From:SeekIC

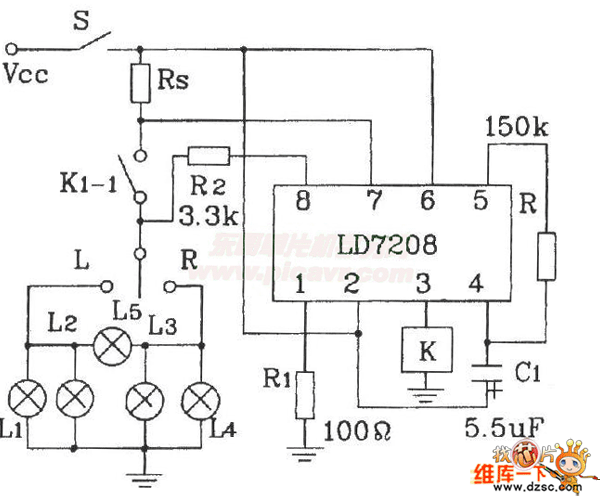

The Car Turing Alarm (LD7208 Specific IC) Application Circuit is shown in the picture below. This circuit's main functions are: when it is working normally and the car lamp is intact, the car lamp and the driver seat's monitoring lights would flash toghter and the flash frequency is 80 per minute. Once the car lamp is damaged, the monitoring light's flash frequency would speed up to double to alarm.
