CVD-1--the decoding integrated circuit of SVCD player

Published:2011/7/12 3:57:00 Author:Borg | Keyword: decoding, integrated circuit, SVCD player | From:SeekIC

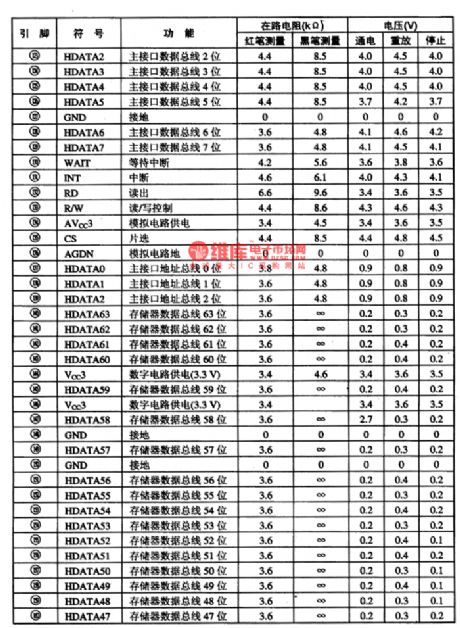

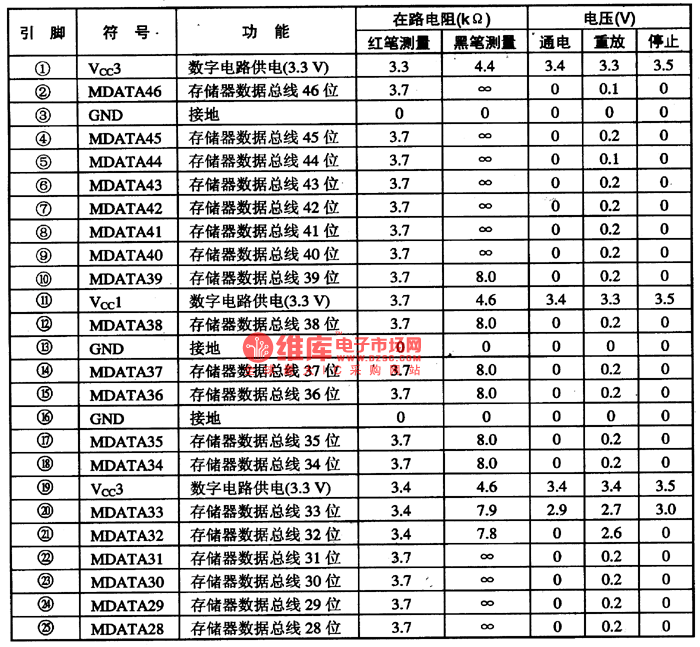

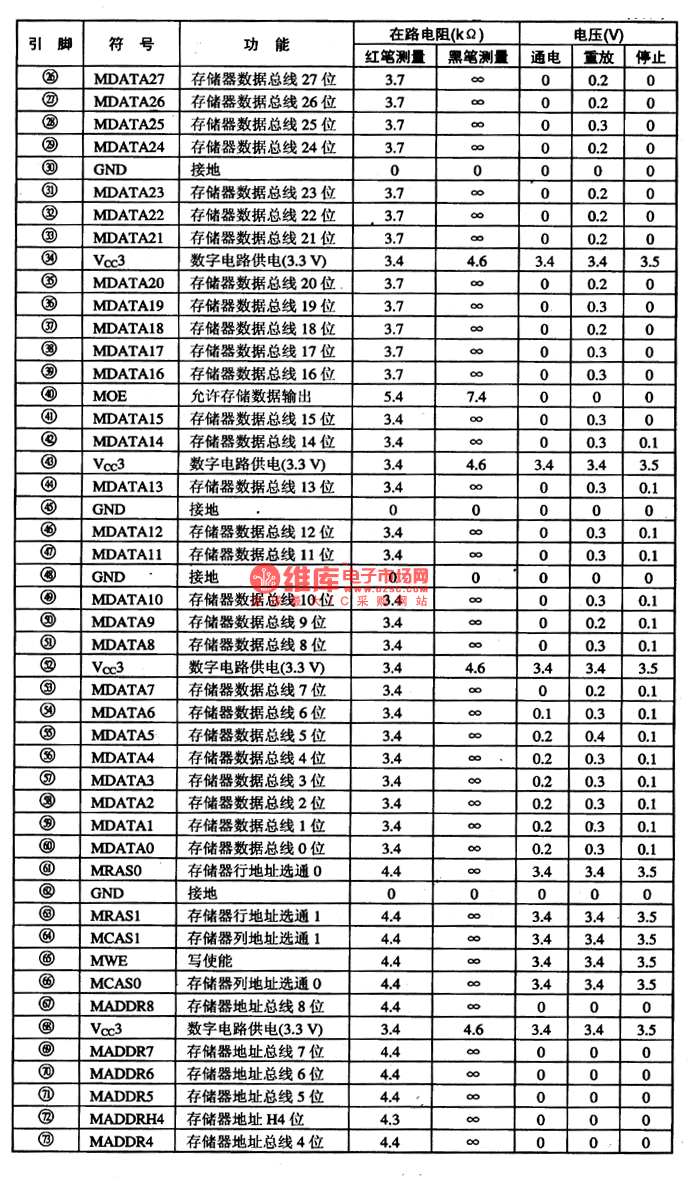

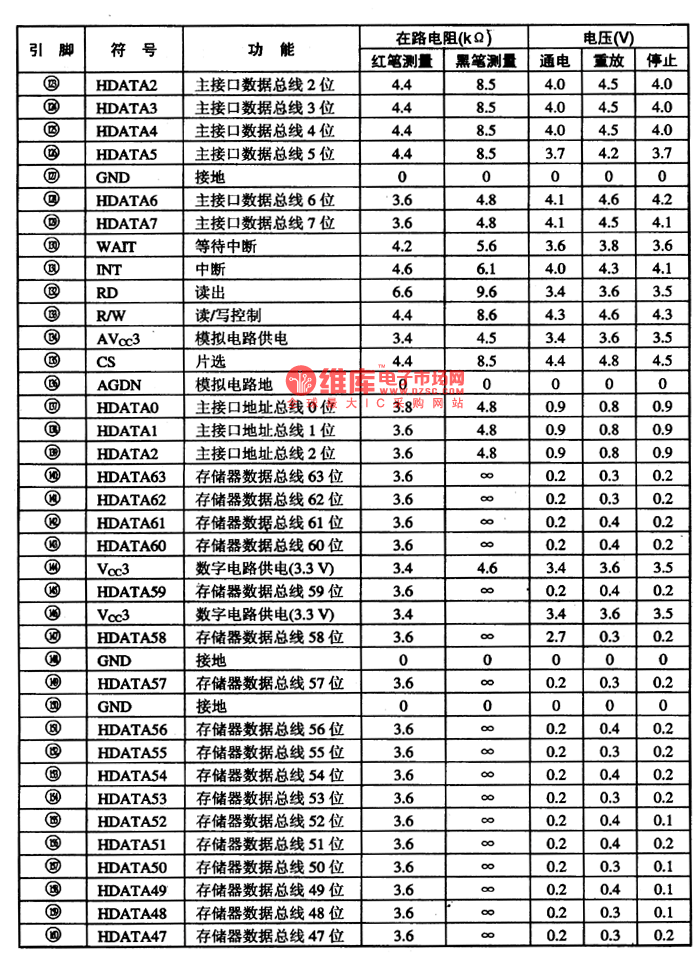

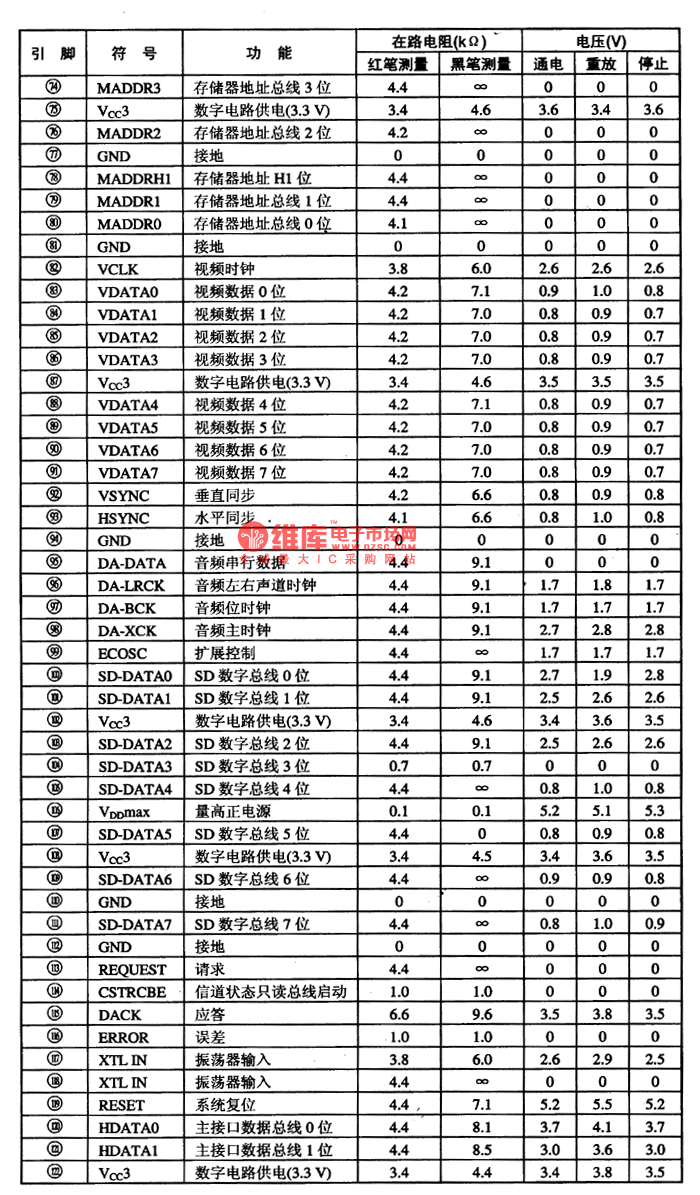

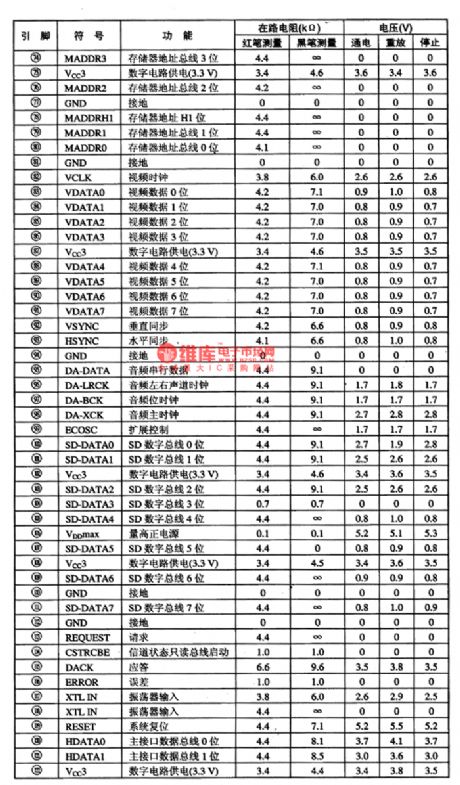

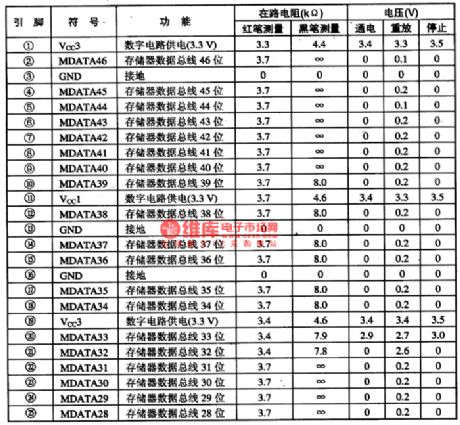

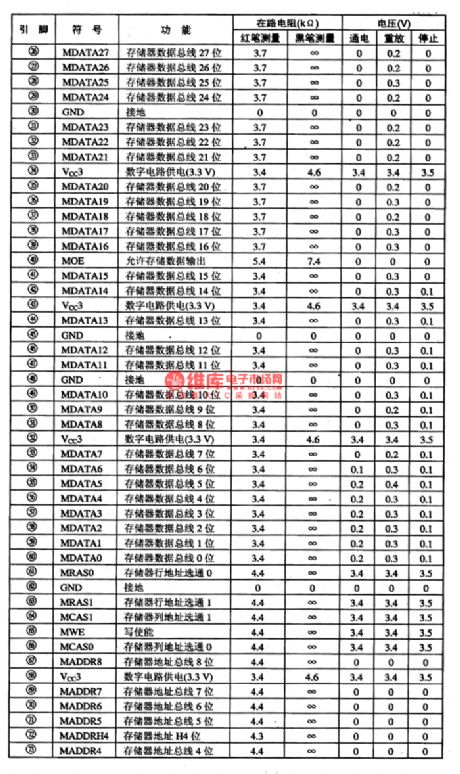

CVD-1 is the decoding integrated circuit of SVCD player, which is used in Changhong and other SVCD players as the decoding circuit.1.function featuresCVD-1 contains the memory, controller, main drive logic control, programme spreading decoder, OSD decoding, layer decoding, MPEG video decoder, MPEG audio decoder, video mixer, synchronized generator, digital audio connector and other circuit unit.2.pin functions and dataCVD-1 is in 160-pin square package structure, whose pin functions and data are listed in table 1.
