CD9632--the field scanning output integrated circuit

Published:2011/7/13 22:10:00 Author:Borg | Keyword: field scanning, integrated circuit | From:SeekIC

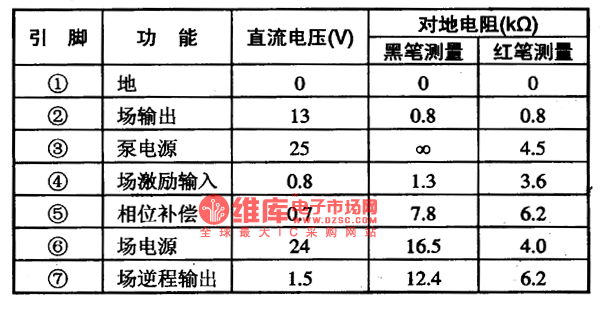

1.function featuresCD9632 contains the field scanning motivation signal amplifier circuit, field scanning output power amplifier circuit, field blanking pulse generating circuit, field scanning pump power supply circuit and other additional circuits.2.pin functions and dataCD9632 is in 7-pin single in-line package, whose pin functions and data are listed in table 1. The data in the table are from the test results of Konka T2587(1) large screen color TV sets. Table 1. Pin functions and data of CD9632
