CD4060 oscillator frequency circuit

Published:2011/6/12 20:44:00 Author:John | Keyword: oscillator | From:SeekIC

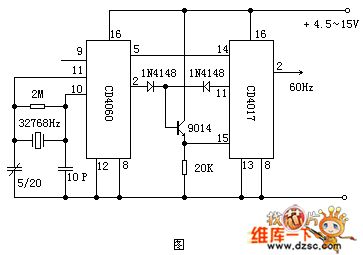

The quartz oscillator frequency can be corrected and frequency on pin 9 can be measured by a frequency counter CD4060 about 32768Hz. If the deviation exists, adjust the variable capacitor slightly to be corrected. The figure shows a time base signal generator composed of a CD4060 of 60Hz. Compared to former circuits, this is the most useful one of several time-base signal circuits.
