Buick Seat Backrest Adjustment Circuit

Published:2011/5/17 7:24:00 Author:Robert | Keyword: Buick, Seat, Backrest, Adjustment | From:SeekIC

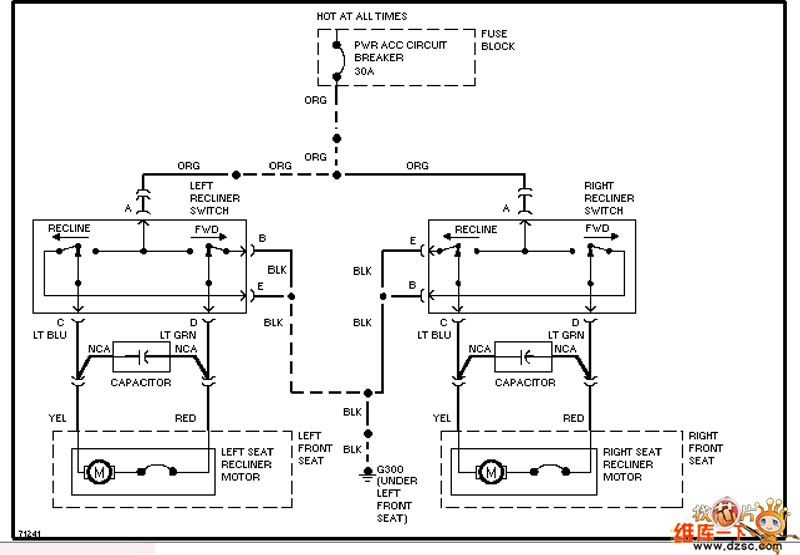

The Buick Seat Backrest Adjustment Circuit is shown below.
