Beijing Cherokee wire cross-section conventional and regular circuit diagram

Published:2011/5/6 4:07:00 Author:Rebekka | Keyword: Beijing Cherokee wire, cross-section conventional and regular | From:SeekIC

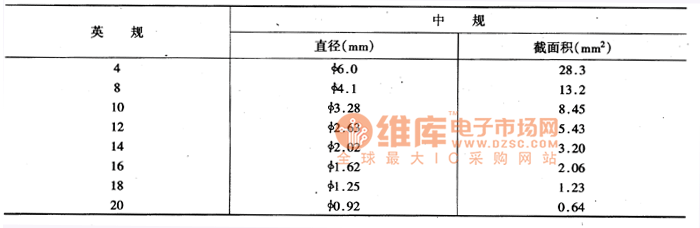

Specify the wire cross-sectional area and color. Figure shows 31-8 Power Configuration in the left side of the first line labeled 12 Red , 12 Orange , where red and orange color shows the wire. 12 is a cross-sectional area wire regular code, the main wiring conventional and regular are shown in figure1.
