Audi A6 Parking Hating Circuit

Published:2011/7/28 17:54:00 Author:Robert | Keyword: Audi, Parking, Hating | From:SeekIC

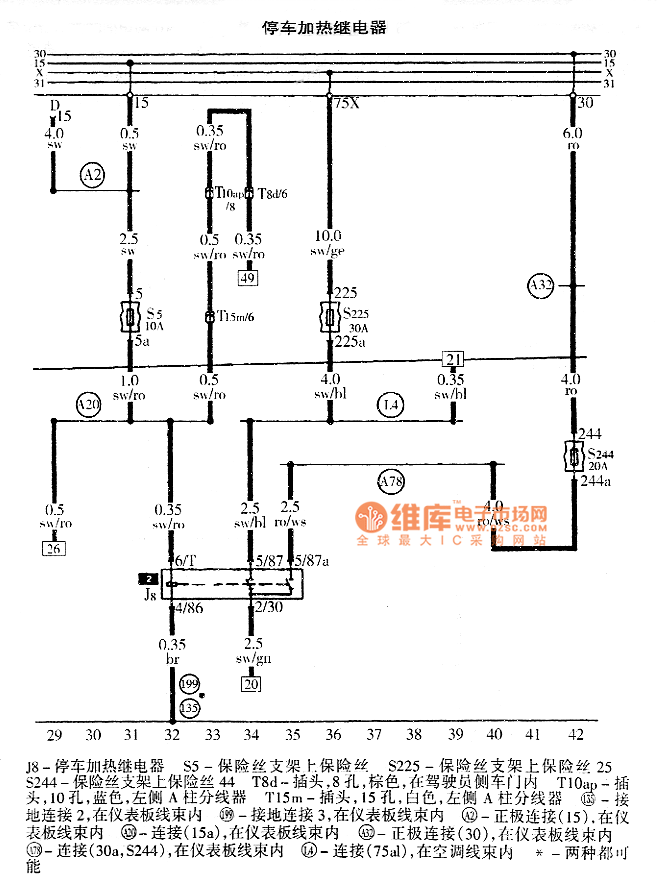

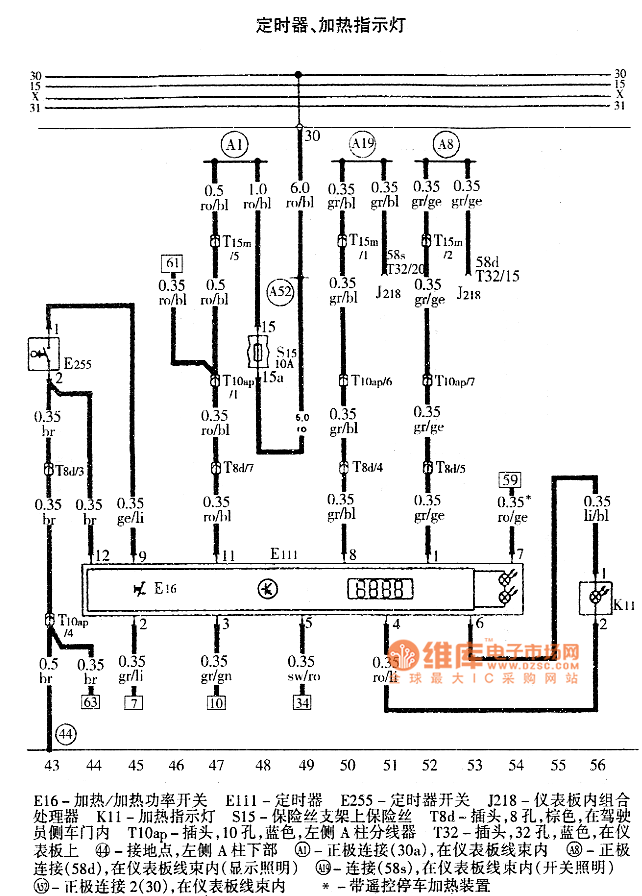

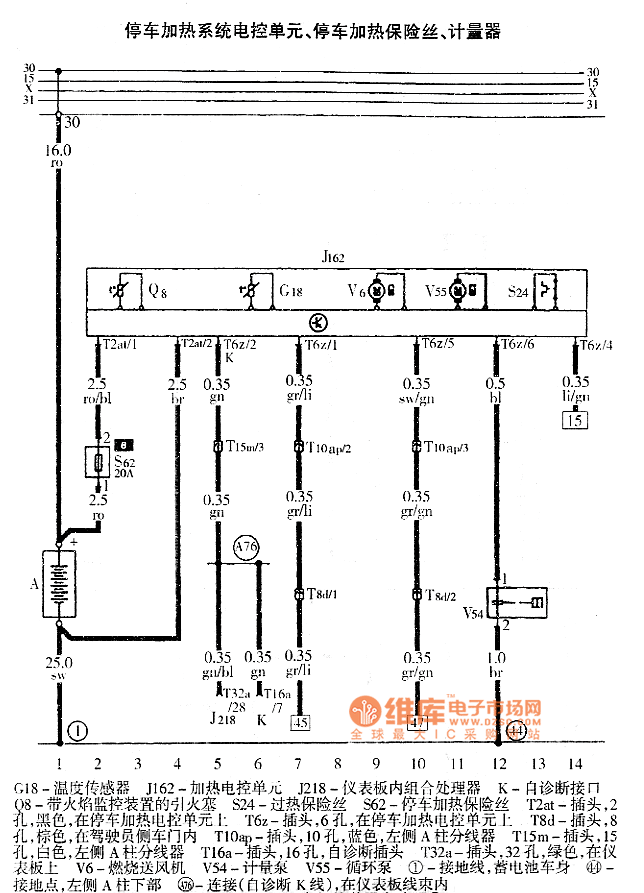

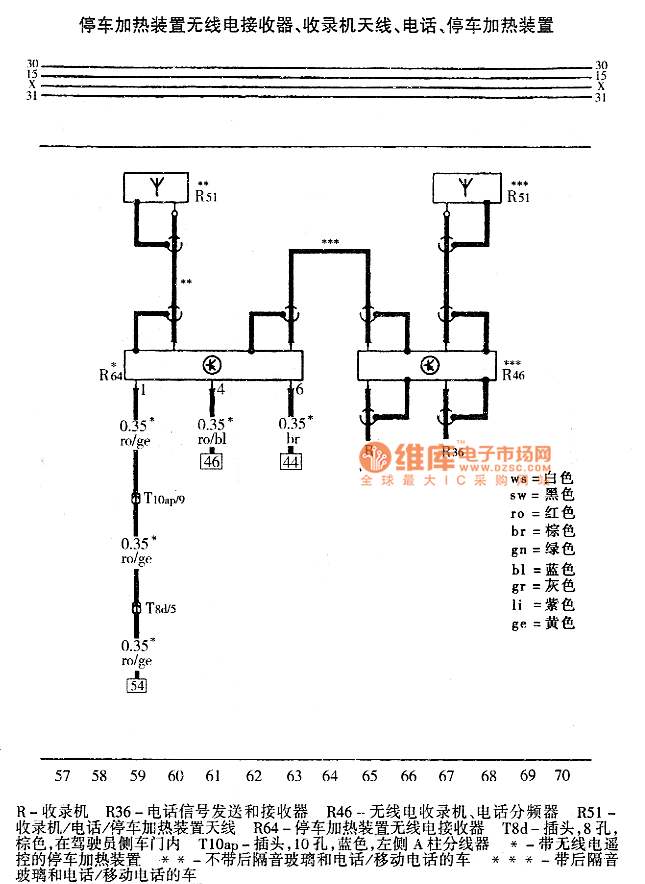

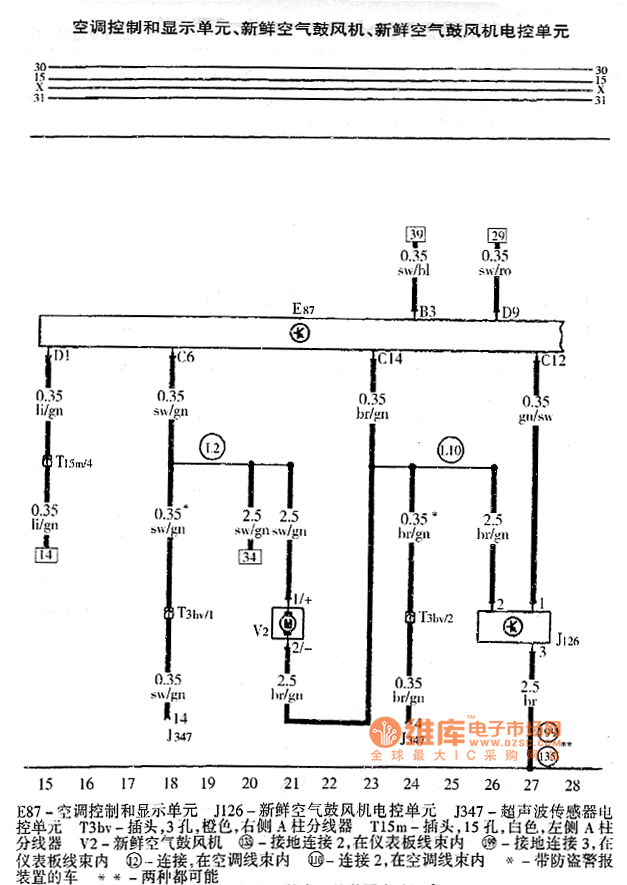

The pictures show the Audi A6 parking heating device circuits. The first picture shows the parking heating system ECU, parking heating fuse and the meter device. The second picture shows the air conditioner control and display unit, fresh air blower ECU. The third picture shows the parking heating relay. The fourth picture shows the timer, heating indication lamp. The fifth picture shows the parking heating device wireless receiver, tape recorders antenna, telephone, parking heating device.
