Audi A6 1.8T Engine Circuit

Published:2011/8/2 6:34:00 Author:Robert | Keyword: Audi, A6, 1.8T, Engine | From:SeekIC

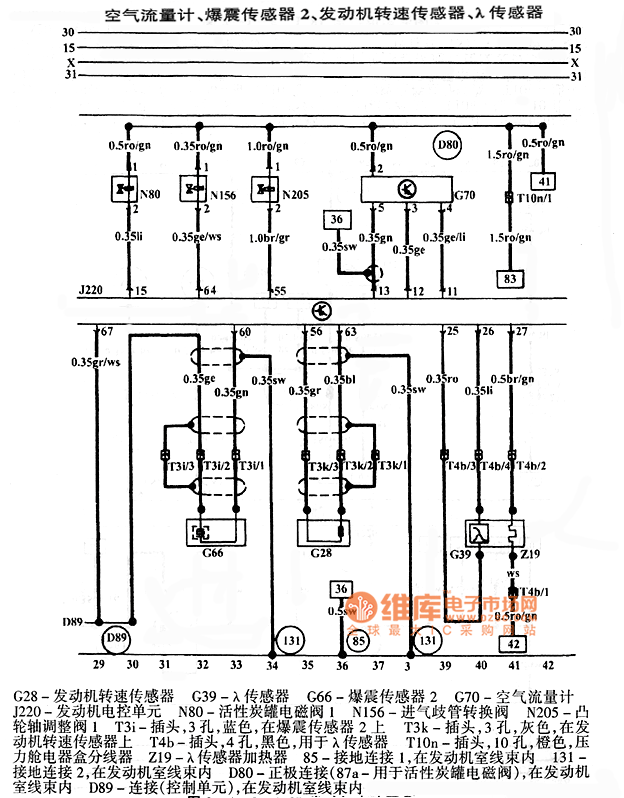

The pictures show the Audi A6 1.8L engine circuits. The first picture shows the battery, starting machine, AC generator.The second picture shows the engine ECU, hall sensor, cooling fluid temperature sensor, intake air temperature sensor, knock sensor 1.The third picture shows the air flow meter, knock sensor 2, engine speed sensor, λ sensor.The fourth picture shows the engine ECU, throttle ECU, ignition coil, spark plug.The fifth picture shows the engine ECU, ignition switch, oil surface level/temperature sensor, fuse.The sixth picture shows the engine ECU, fuel pump relay, fuel pump, fuel meter sensor.The seventh picture shows the reversing light, engine cooling system.
