Audi A4 3.0L Engine Circuit

Published:2011/8/2 6:22:00 Author:Robert | Keyword: Audi, A4, 3.0L, Engine | From:SeekIC

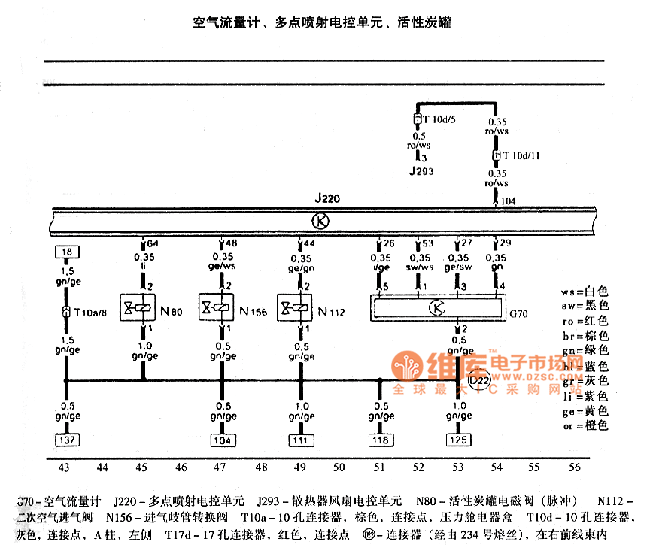

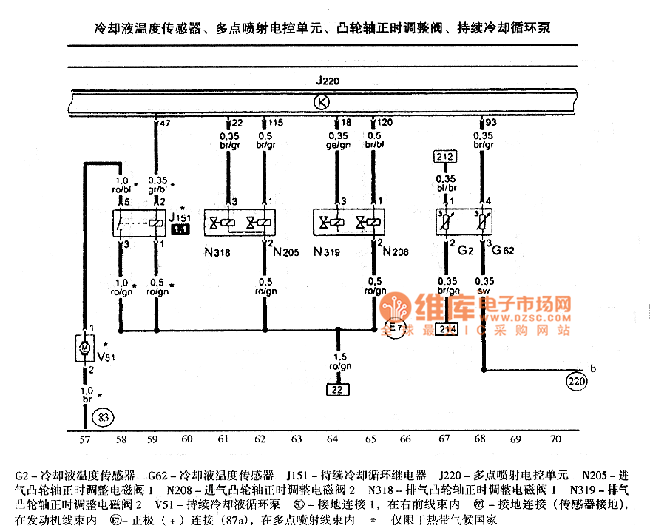

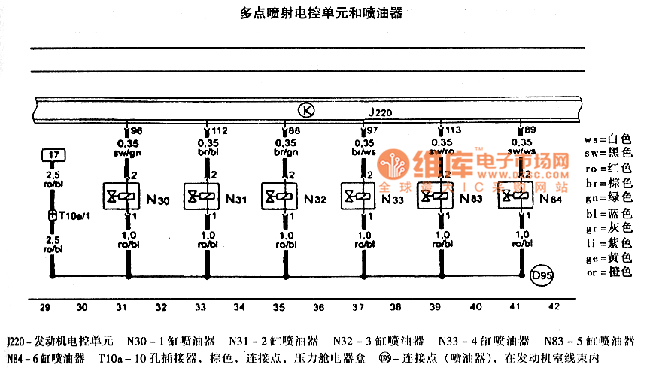

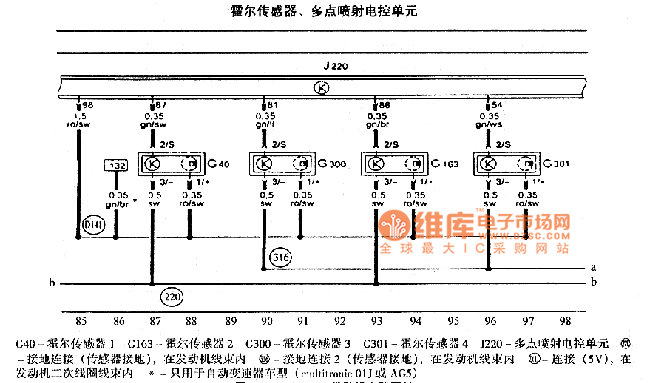

The pictures show the Audi A4 3.0L engine Circuits. The first picture shows the battery, starting machine, AC generator, voltage adjustor, ignition starting switch.The second picture shows the fuel pump relay, multi-point injection control, engine electronic control system power supply relay.The third picture shows the multi-point injection ECU and injector.The fourth picture shows the air flow meter, multi-point injection ECU, activated carbon canister.The fifth picture shows the cooling fluid temperature sensor, multi-point injection ECU, camshaft correct timing adjustment valve, continuous cooling loop pump.The sixth picture shows the hall sensor, multi-point injection ECU.The seventh picture shows the oxygen sensor, multi-point injection ECU.The eighth picture shows the oxygen sensor, multi-point injection ECU.
