Asymmetrical multivibrator circuit

Published:2011/6/4 13:25:00 Author:John | Keyword: Asymmetrical multivibrator | From:SeekIC

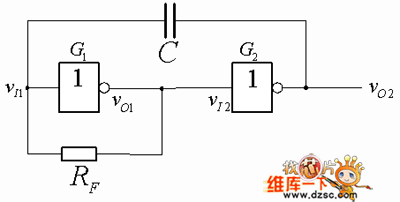

Asymmetrical multivibrator is the simplified form of symmetrical multivibrator [Figure 1]. This circuit only has a feedback resistor and a capacitive coupling. Feedback resistor forces static operating point to locate within the turning area of voltage transfer characteristics. That is to say that the static input level electricity is approximately equal to the output level electricity. So it is said that the static multivibrator is forced to work under the turning area of voltage transfer characteristics. Feature1 Asymmetrical multivibrator circuit
