AUTO_LOCKING_GATE_FOR_TACHOME_DISPLAY

Published:2009/7/16 3:24:00 Author:Jessie | From:SeekIC

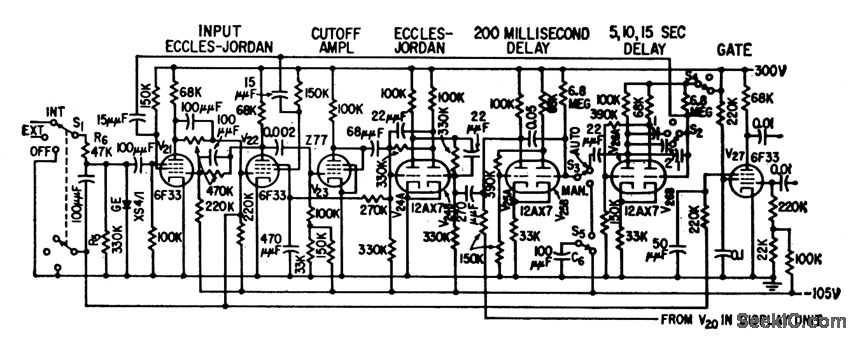

Permits pulses to pass to display unit during gating period. Display can be held for 5, 10, or 15 sec by switching different capacitors into delay Additional 200-millisec delay gives time for counting tubes to return to zero.-J. K, Goodwin, Digital Tachometer Aids in Turbine Design, Elecfronics,32:15, p 58-61.
