AUTOMOTIVE_HI_ZTEST_LIGHT

Published:2009/6/19 2:41:00 Author:May | From:SeekIC

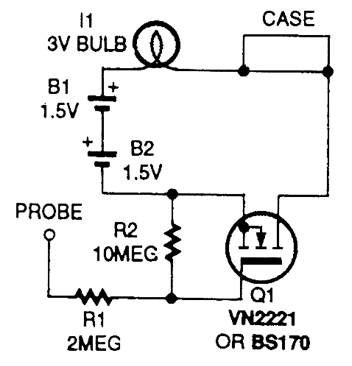

This test Iight has a high-input impedance and draws only 1 mA at 12V. Q1 switches dc to a battery and lamp circuit.
