AUDIBLE_TURN_SIGNAL_INDICATOR_1

Published:2009/7/16 3:42:00 Author:Jessie | From:SeekIC

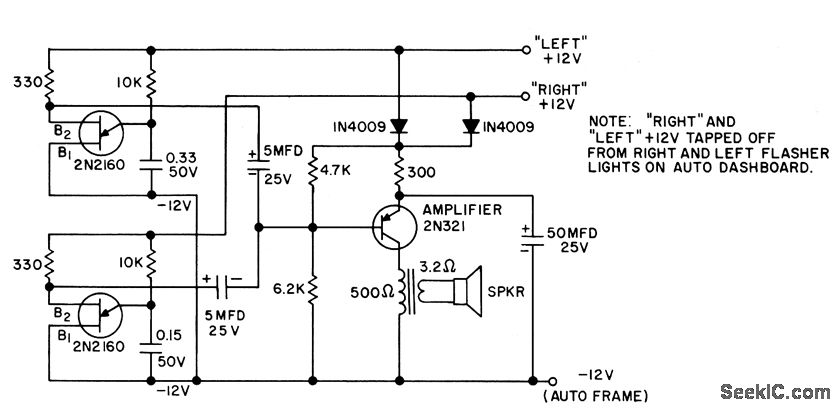

Produces two different tones in synchronism with turn-signal flashers.Diodes prevent short-circuit. For auto with negative ground.- Transistor Manual, Seventh Edition, General Electric Co,. 1964, p 381.
