AUDIBLE_TURN_SIGNAL_INDICATOR

Published:2009/7/16 3:05:00 Author:Jessie | From:SeekIC

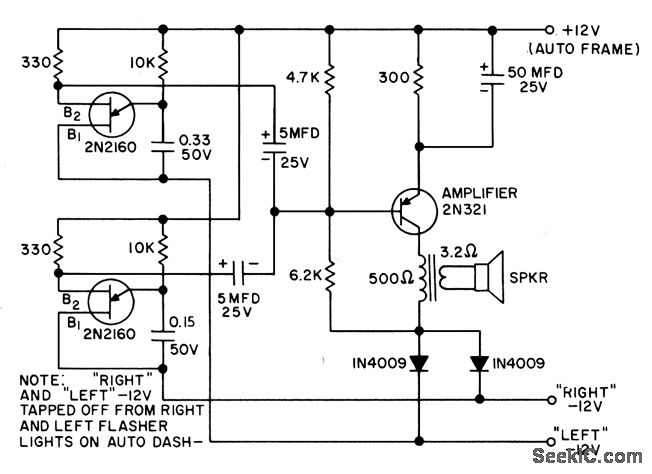

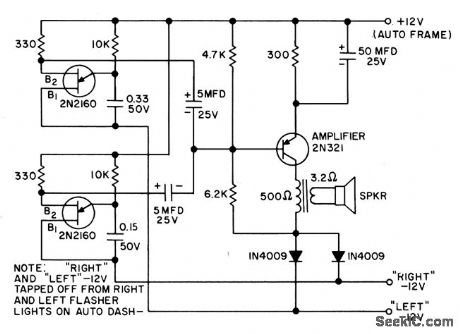

Produces two different tones in synchronism with turn-signal flashers. Diodes prevent short-circuit. For autos with positive ground. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 381.
