200W amplifier and radio circuit for bus

Published:2011/11/10 3:16:00 Author:Ecco | Keyword: 200W, amplifier , radio , bus | From:SeekIC

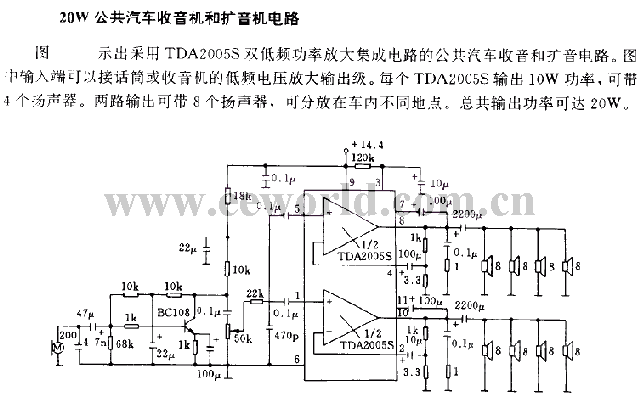

The circuit shown in the chart uses TDA2005S dual low-frequency power amplifier integrated circuit for bus radio and PA circuits. The input end in the Figure can be connected to low-frequency voltage amplifier output stage in radio or microphone. Each TDA2005S outputs 10W power with four speakers. Two outputs can drive eight speakers, which can be located in different locations in the car. The total output power is up to 20W.
