120_W300_V_D_C_AUTO_CONVERTER

Published:2009/7/16 3:53:00 Author:Jessie | From:SeekIC

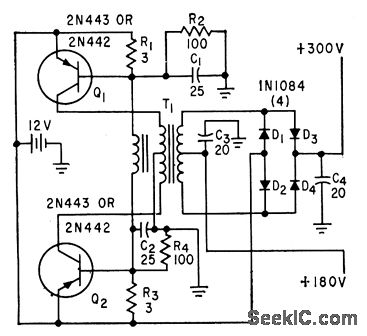

For 12-v auto systems. Develops square-wave voltage at 200 cps, for conversion to 300 v d-c by silicon-diode bridge rectifier. Each switching transistor requires T-inch-square sheet of 1/8th-inch aluminum as heat sink.-W. E. Bushor,Electronics and the American Automobile, Electronics, 31:47, p 73-79.
