Video_distribution_amplifier_

Published:2009/7/23 20:22:00 Author:Jessie | From:SeekIC

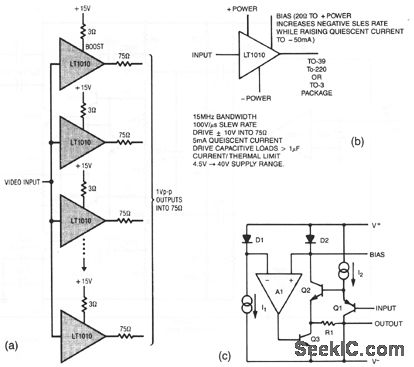

The resistors in the output lines are included to isolate reflections from unterminated lines. If the line characteristics are known, the resistors can be deleted. To meet NTSC gain-phase requirements, a small-value boost resistor is used. Figures 3-27B and 3-27C show the LT1010 characteristics.
