TONE_CHIME

Published:2009/6/18 22:50:00 Author:May | From:SeekIC

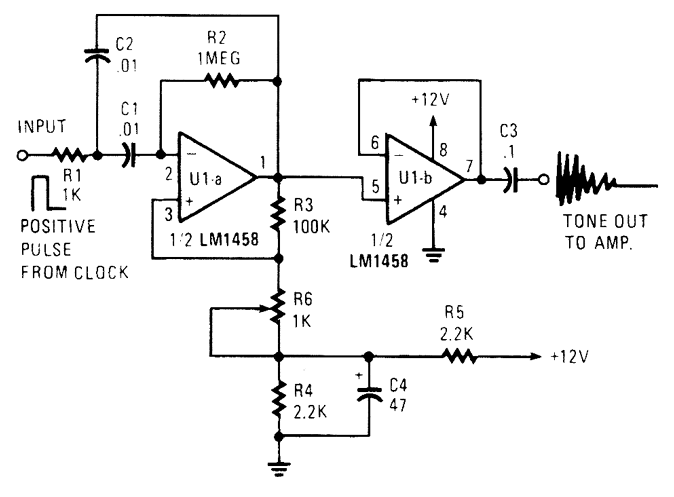

A positive pulse input to RI causes the active filter UI-a to ring. If the gain is set too high (R6), the circuit will oscillate. R6 controls the positive feedback and the Q of the circuit. C1 and C2 can be changed to adjust the tone frequency.
