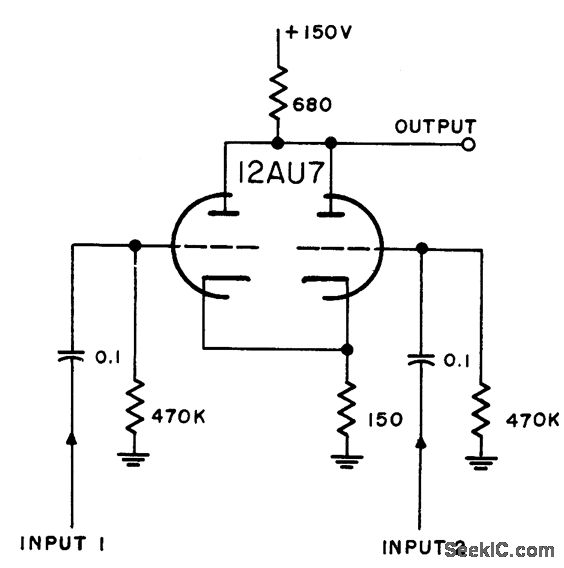

TRIODE_COMMON_PLATE_MIXER

Published:2009/7/23 23:43:00 Author:Jessie | From:SeekIC

Is good adder for coincident inputs. Proves unity gain. Generally preferred to pentode common-plate mixers.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-8.
