THREE_INPUT_TWO_PENTODE_MIXER

Published:2009/7/23 23:44:00 Author:Jessie | From:SeekIC

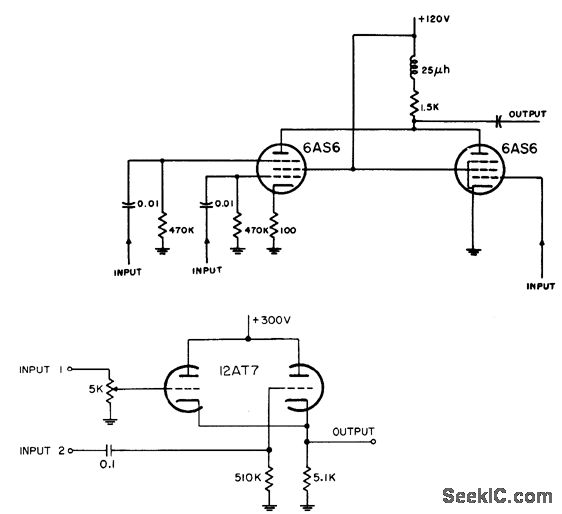

Distance markers and iff signals are inserted at separate grids on one tube, while radar video from input 3 is impressed on control grid of other pentode.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. l, Electron Tube Circuits, 1963, p N4-4.
