THREE_INPUT_IFF_MIXER

Published:2009/7/23 23:37:00 Author:Jessie | From:SeekIC

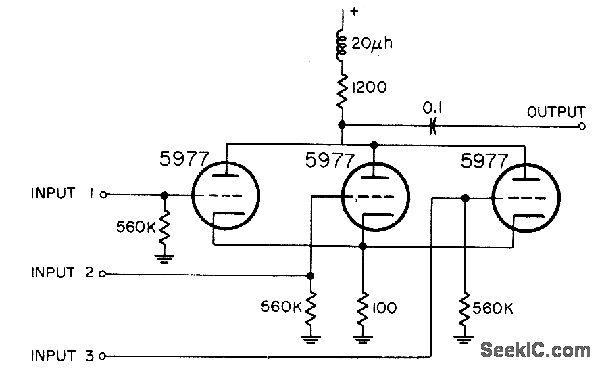

Common-plate connection serves for combining three iff signals. Common cathode resistor provides some degeneration.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-3.
