TA8132--the single chip reception integrated circuit

Published:2011/6/9 20:50:00 Author:qqtang | Keyword: single chip, integrated circuit | From:SeekIC

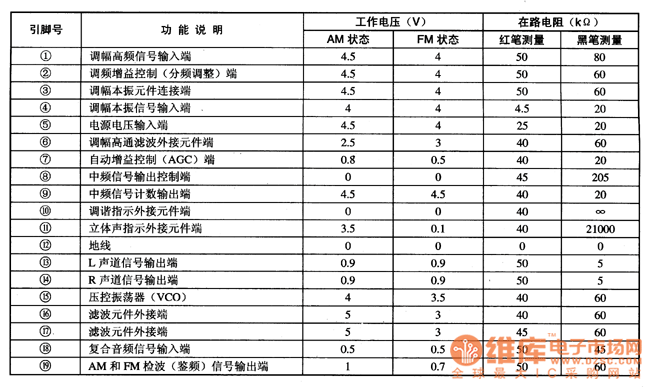

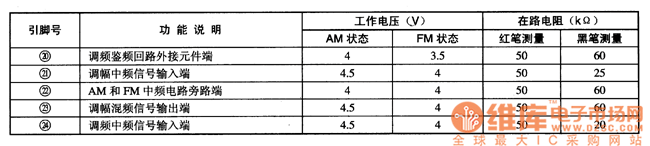

1.function featuresTA8132 contains AM mixing, AGC, INTREQ and detection circuit; it also contains FM INTREQ, frequency discrimination and stereo circuit. In addition, it has the functions as follows. FM/AM output point(9-pin) can provide with auto stop signal of counting modulation for the digital channel selecting modulation system. AM INTREQ counting frequency is 465KHZ; and the FM INTREQ counting frequency can be 10.7MHz, and according to the need, it can be replaced by 1.3375MHz by starting the 1/8 distribution circuit of IC .2.pin functions and data
