Sprinkler Sound Effects Artificial Circuit

Published:2011/7/14 0:36:00 Author:Joyce | Keyword: Sprinkler , Sound Effects , Artificial | From:SeekIC

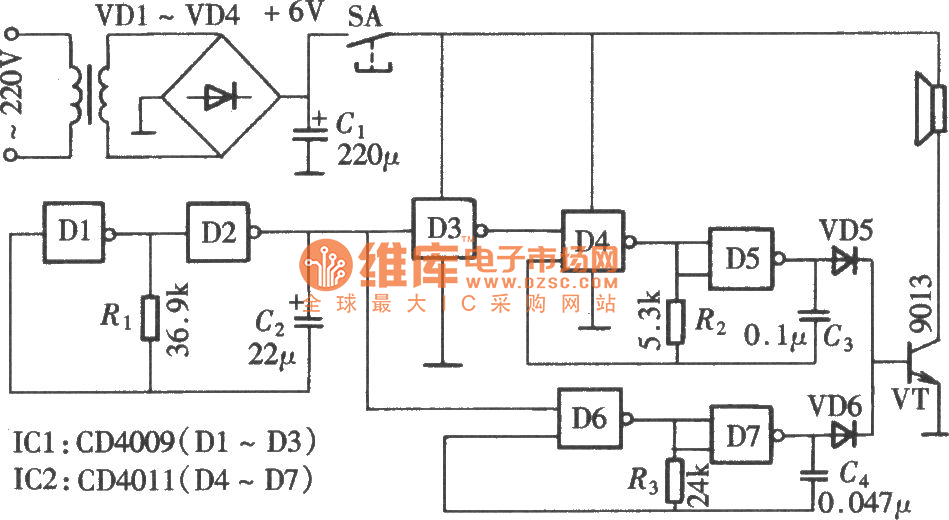

Sprinkler sound effects artificial circuitis composedof a CD4069 and a CD4011, which form three groups of multivibrator with different frequencies. After mixing and modulating, it will produce a sound simulating that of water sprayer. The circuit is as shown in the figure. Two gates of CD4069 in the circuit D1, D2 compose a low frequency multivibrator with R1 and C2, whose function is to control the two audio oscillators to work by turns through cyclical change of the output pulse.
