Solid Recorder Circuit

Published:2011/4/24 0:34:00 Author:TaoXi | Keyword: Solid Recorder | From:SeekIC

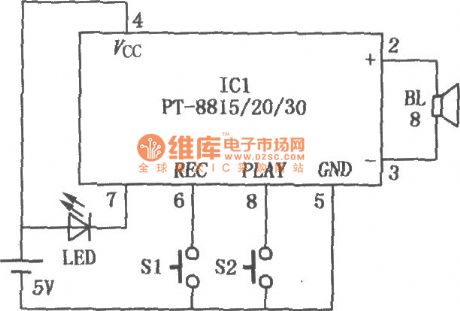

The Solid Recorder Circuit is as shown. ICl is the fool type IC of voice recording & broadcasting (PT-8815／20／30). When this device is working, we press the recording switch Sl to light the LED, this means the ICl is under the recording mode, so we can record to the speaker BL. After recording, we press the playback switch S2 to play the sound we just recorded. The circuit can be widely used in various of occasions that need voice prompt.
