Sample_hold_circuit

Published:2009/7/23 22:20:00 Author:Jessie | From:SeekIC

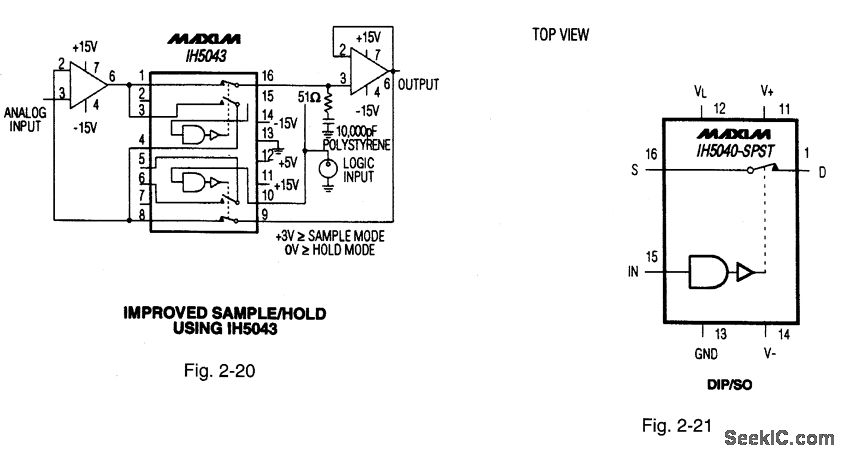

Figures 2-20 and 2-21 show a typical application circuit and pin configuration/ switching-state, respectively, for the IH5040-IH5045/47. These general-purpose CMOS analog switches are latch-up proof, with 1-nA leakage current and less than 1-μA quiescent current. MAXIM HIGH-RELIABILITY DATA BOOK, 1993, P. 1-153.
