SUPPRESSED_CARRIER_SIGNAL_GENERATOR

Published:2009/7/24 3:14:00 Author:Jessie | From:SeekIC

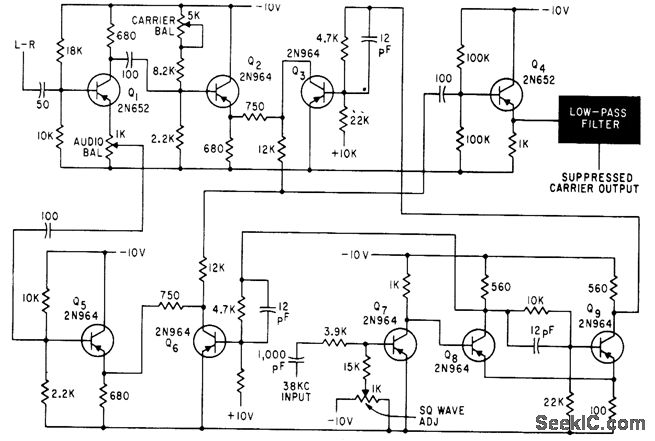

Output of 38 kc, modulated by L-R signal, is obtained by bias-modulating symmetrical stable multivibrator. Carrier will remain suppressed 46 db below maximum signal level for days.-S. Feldman, Stereo F.M Multiplex Alignment Signal Generator, Electronics, 35:3, p 37-39.
