SHOCKLEY_DIODE_MVBR_TESTS_TRANSPORTS

Published:2009/7/24 4:54:00 Author:Jessie | From:SeekIC

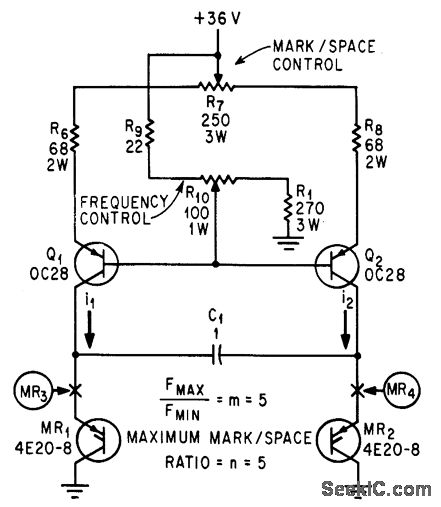

For testing tape transports, frequency can be varied over 15:1 range and mark/space ratio from 1:15to 15:1. Shockley diodes MR1 and MR2 serve as changeover switch. Two additional diodes, at MR3 and MR4, are needed if reverse voltage rating of diodes is less than their striking voltage.-C. J. Dakin, Novel Multivibrators Test Tape Transports, Electronics, 37:7, p 40-43.
