RTS501--the regulation timing integrated circuit

Published:2011/6/9 4:28:00 Author:qqtang | Keyword: regulation timing, integrated circuit | From:SeekIC

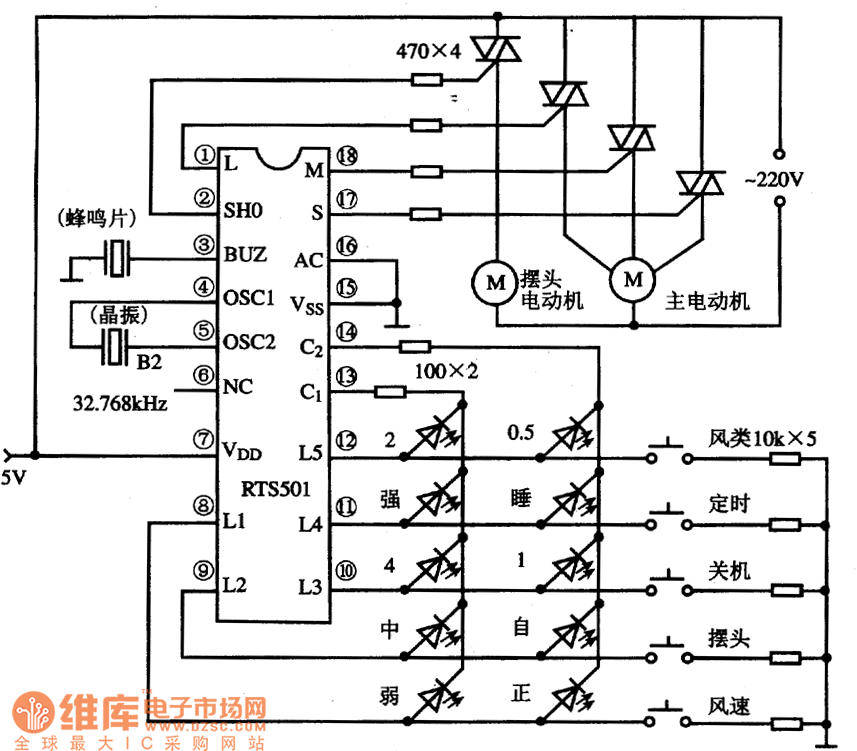

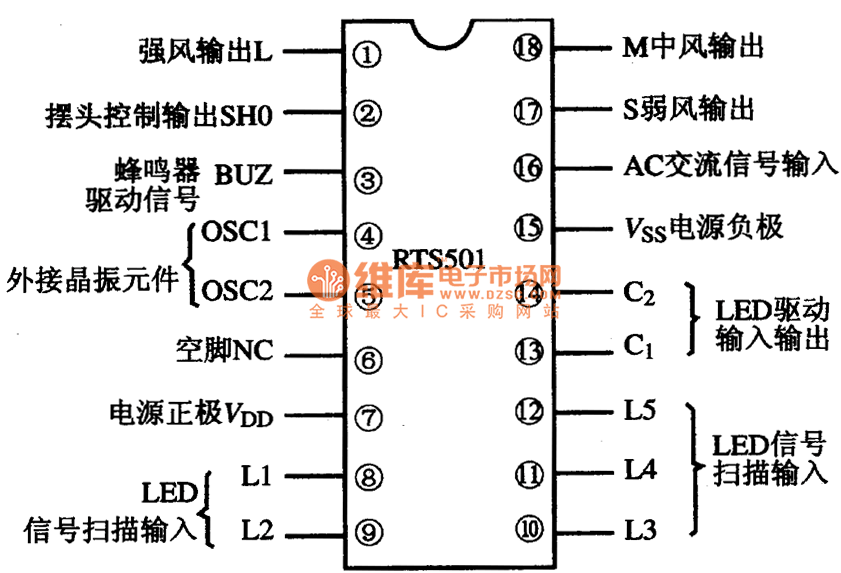

RTS501 is a regulation timing integrated circuit, which is suitable for the conditions that need speed regulation and timing, such as fan programme control and so on.1.function featuresRTS501 contains thetiming circuit, speed control circuit, clock oscillating circuit, speed control circuit and LED drive circuit, etc. It has functions of natural wind and sleep wind.2.pin functions RTS501 is in 18-pin dual line plastic package, whose outline and pin functions are shown in the figure. The outline and pin functions of RTS5013. The typical application circuit The typical application circuit of RTS501
