RIAA_PREAMPLIFIER

Published:2009/6/18 23:55:00 Author:May | From:SeekIC

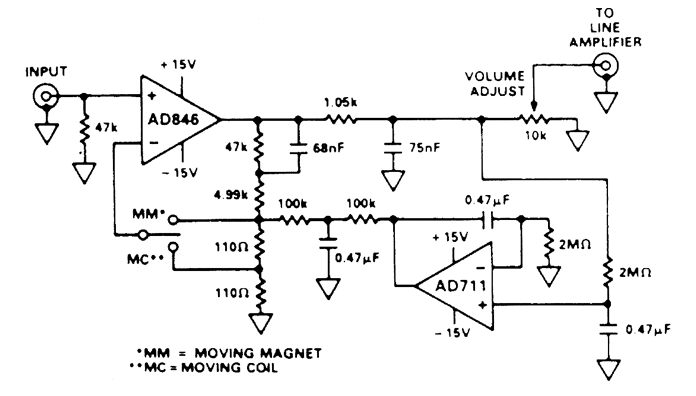

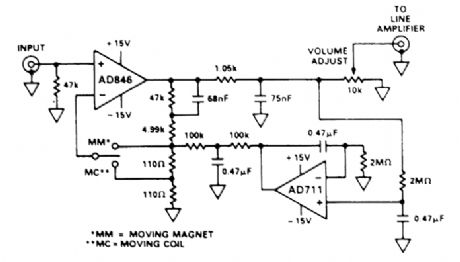

This preamp for RIAA phone use uses two op amps by Analog Devices. A switch selects compensation for moving magnet or rrtoving coil pickups.
