Q_MULTIPLIER

Published:2009/7/10 5:43:00 Author:May | From:SeekIC

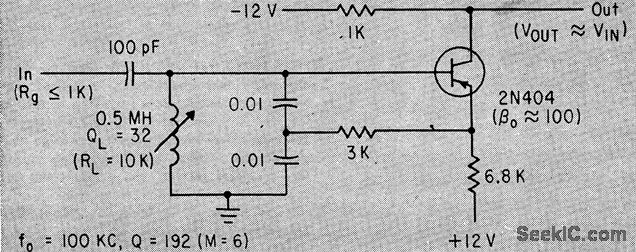

Circuit Q in single-coil arrangement is insensitive to drift in trctnsistor parameters, permitting use in filter and oscillator design.-J. R. Woodbury, Simple Transistor Q-Muhiplier or Oscillator, Electronics, 35:22, p 53-54.
