QUAD_TONE_OSCILLATOR

Published:2009/6/22 23:40:00 Author:Jessie | From:SeekIC

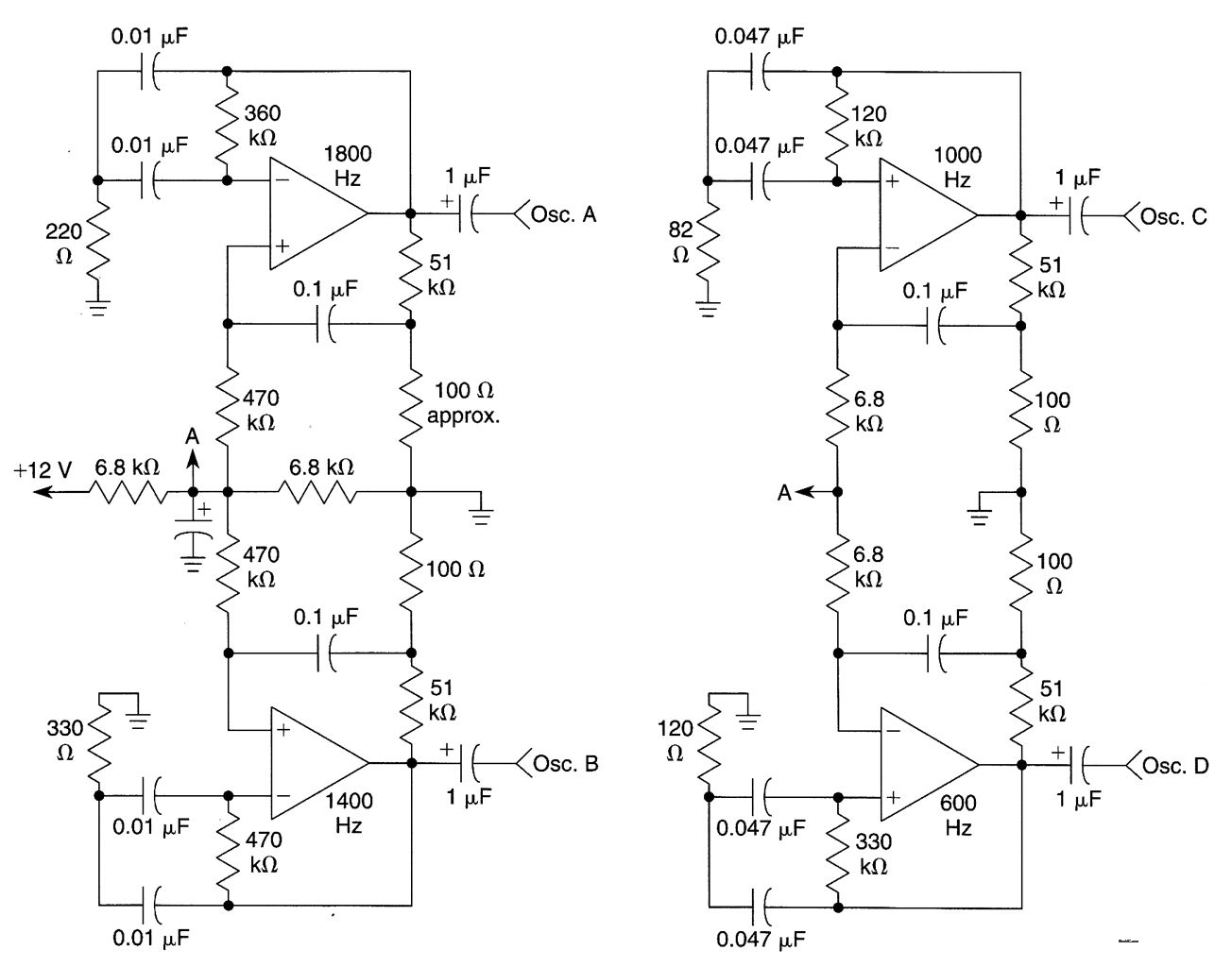

A quad op amp (TL084, etc.) can be used to produce four audio tone generators for use in a test setup. The circuit uses a 12-V supply.
