SELECTIVE_PREAMPLIFIER_FOR_INFRARED_PHOTODIODE

Published:2009/6/16 22:15:00 Author:May | From:SeekIC

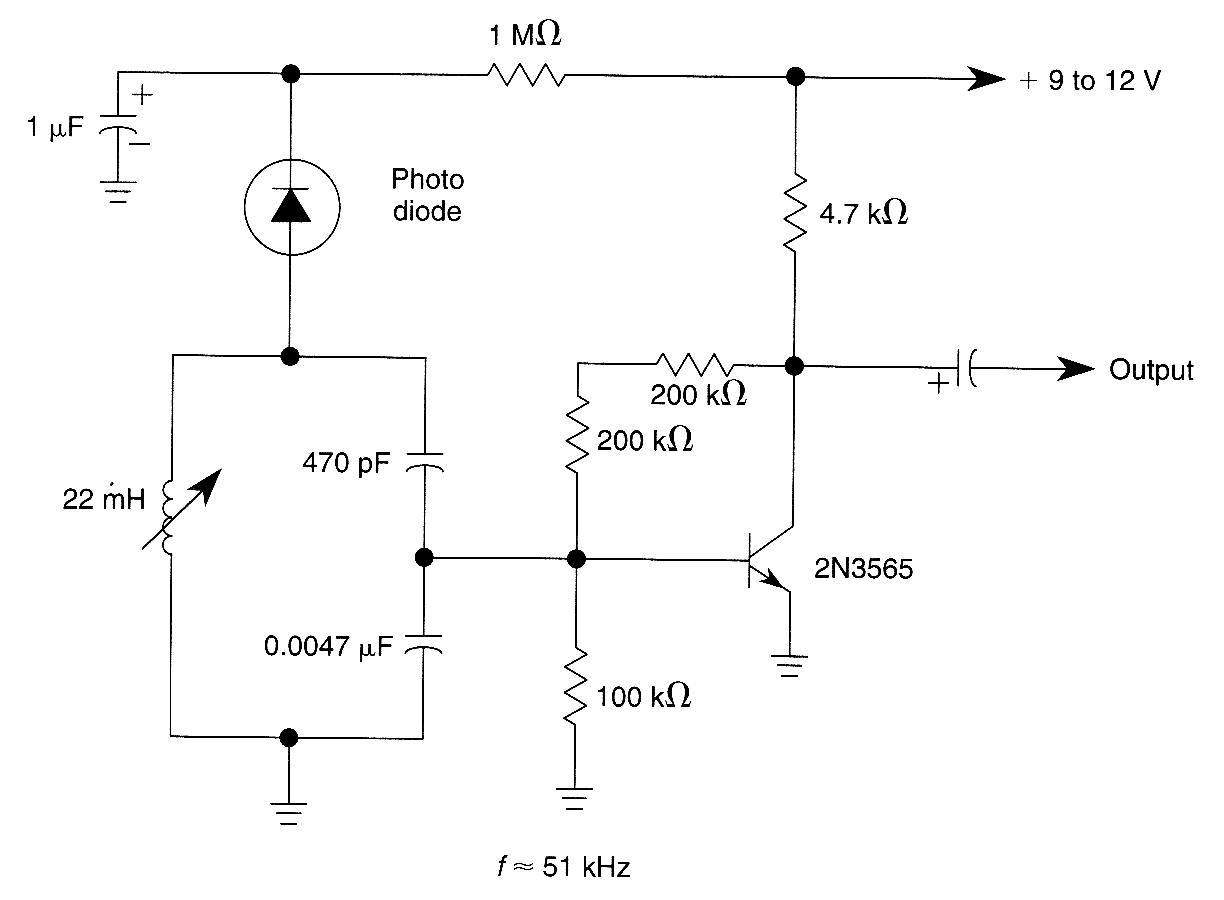

The circuit uses a tuned circuit to achieve frequency selection. Values are for operation at about 51 kHz. The 2N3565 amplifies the output developed by the tuned circuit.
