PREFERRED_VIDEO_LIMITER

Published:2009/7/15 23:20:00 Author:Jessie | From:SeekIC

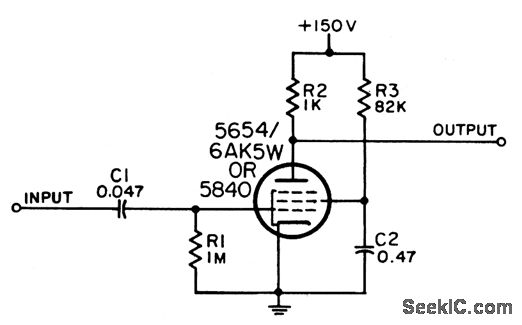

Used to amplify and limit low-level video signals. Capable of handling very fast rise times. Maximum duty factor is 4%. Limiting level is within 35% of 4.8 V, depending on variations in tube and components.-NBS, Handbook Preferred Circuits Navy Aeroncautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, PC 21, p 21-2.
