PREAMP_MODULE

Published:2009/7/24 3:09:00 Author:Jessie | From:SeekIC

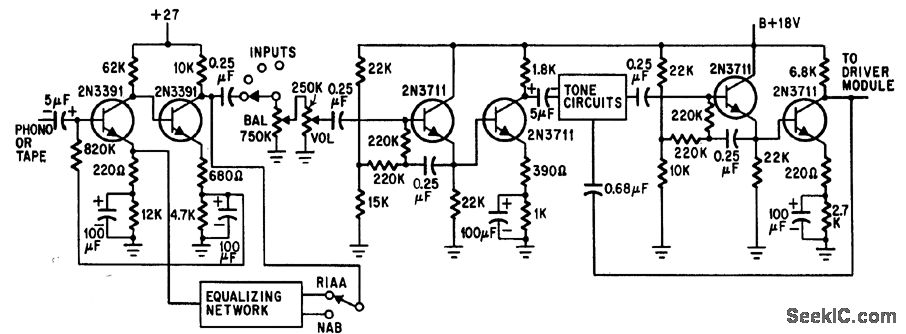

Bootstrapped emitter-followers accept high-impedance input signals and minimize loading of equalizing and tone circuits.-S. Messin and T. E. Nawalinski, A Solid State Stereo Set Built in Modules, Electronics, 38:16, p 88-92.
