NJM2234L--the video amplifier and switch integrated circuit

Published:2011/6/9 21:40:00 Author:qqtang | Keyword: video amplifier, integrated circuit | From:SeekIC

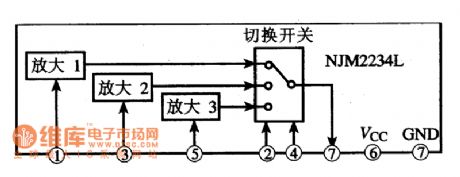

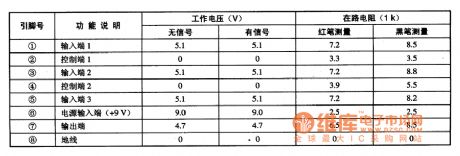

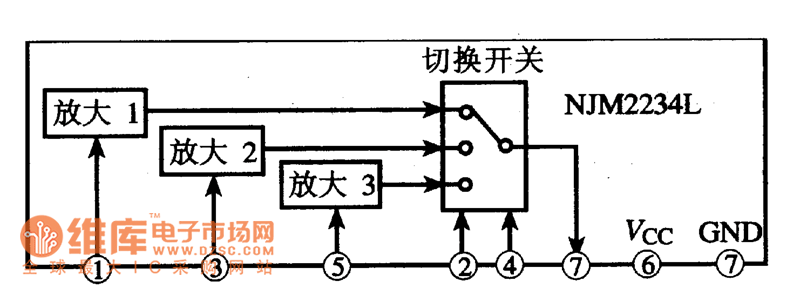

NJM2234L is the video amplifier and switch integrated circuit produced by NJR, which is commonly used in large screen color TV as the video amplifier and multichannel shift switch.1.function featuresNJM2234L contains 3 the same-function video amplifier circuits, which is equal to the SP3T and other additional circuit. Its internal circuit is shown in the figure. The internal circuit of NJM2234L2.pin functions and dataPin functions and data of NJM2234L
