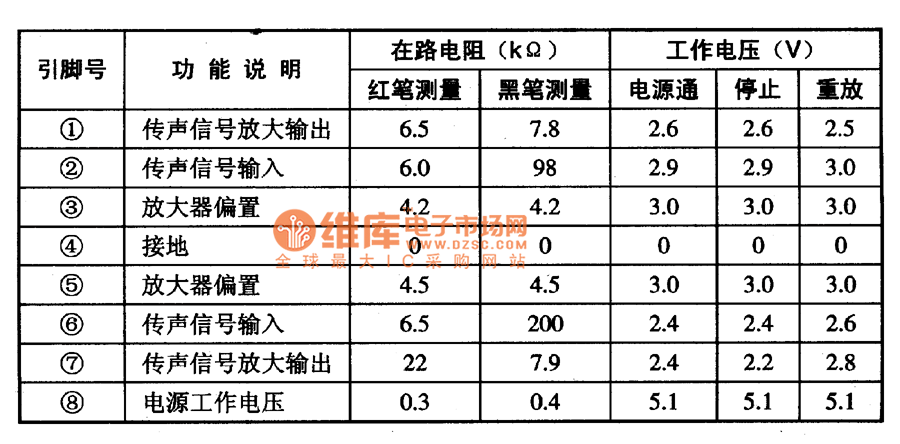

NJM2100 is an audio signal amplifier integrated circuit produced by JRC Corp., Japan, which is widely used in all kinds of stereo karaoke systems, such as VP3000 disc player, etc.1.pin functions and dataNJM2100 contains two lines of same-function audio signal amplifier circuits, and it is in 8-pin in-line package, its pin functions and data are listed in the table.The pin functions and data of NJM2100
The typical application circuit of NJM2100
