Music Integrated Circuit

Published:2011/7/8 8:48:00 Author:Joyce | Keyword: Music , Integrated | From:SeekIC

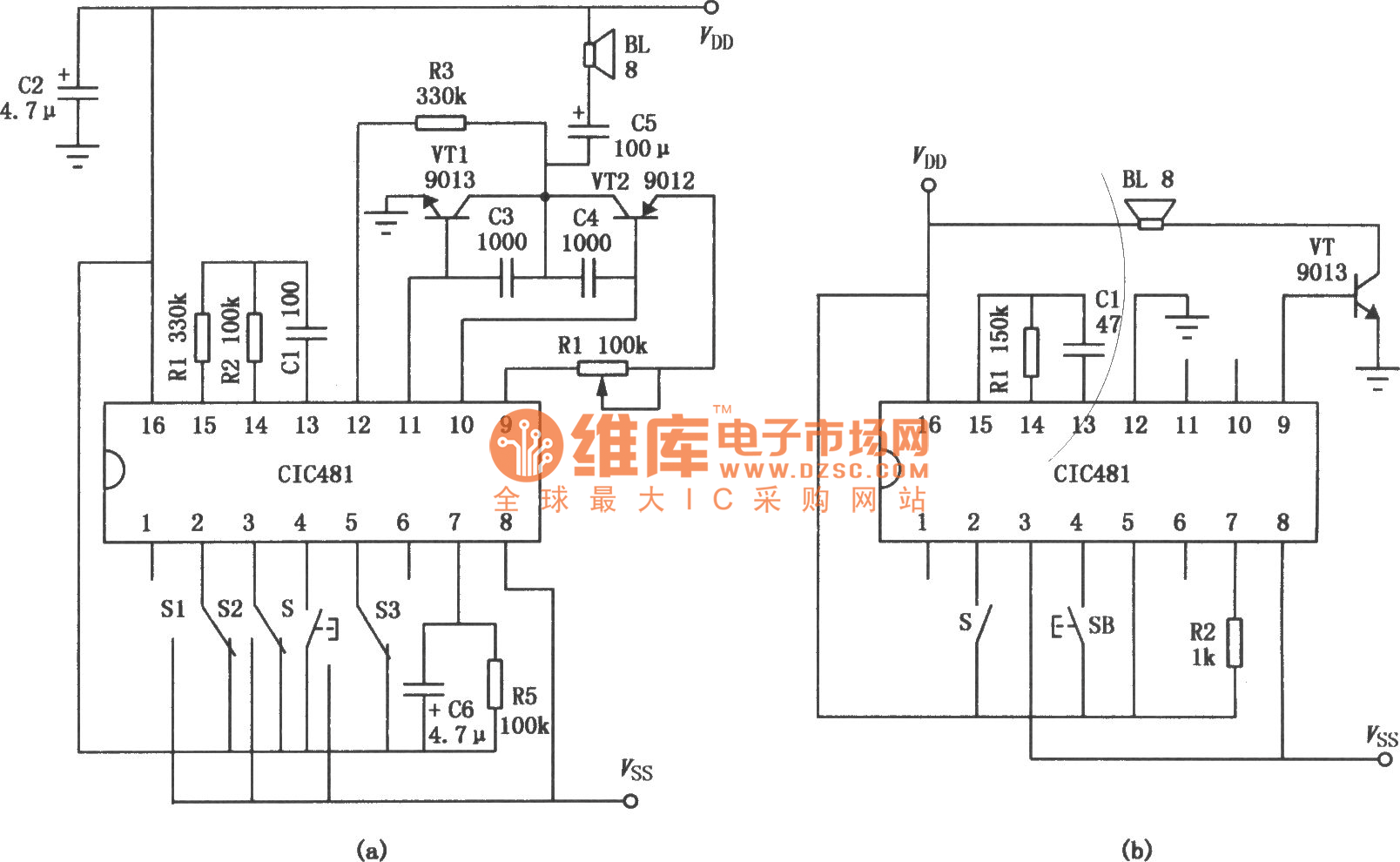

CIC481 is a CMOS music integrated circuit with songs played by piano, organ and mandolin. It can be used in products like toys, clocks, doorbells, etc. Its typical application circuit is as shown in the figure.
