SILENT_AUDIO_SWITCHING_MIXING

Published:2009/6/24 2:21:00 Author:May | From:SeekIC

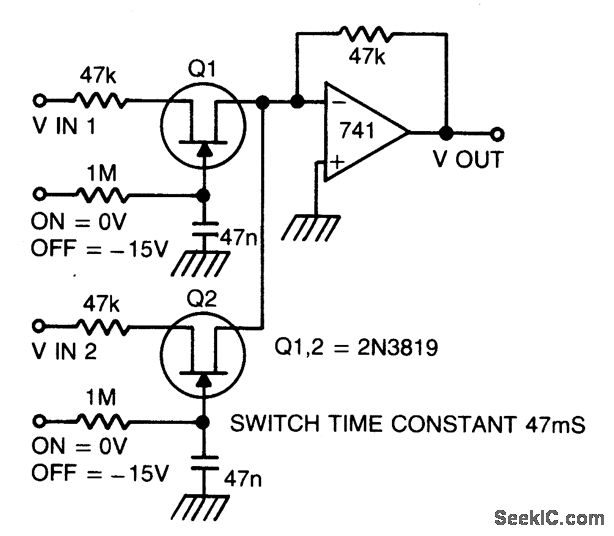

Two or more signals can be switched and/or mixed without annoying clicks by using FETs and a low input-impedance op amp circuit.
