LOW_LEVEL_LOW_NOISE_HIGH_GAIN

Published:2009/7/14 23:00:00 Author:Jessie | From:SeekIC

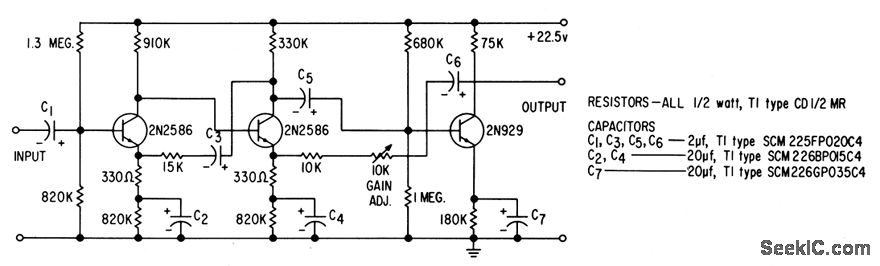

Gives gains up to 1,000(60 db) for high-impedance,transducer applications, With typical noise figure of 1 db at emitter currents below 1 microamp and generator resistance above 1 meg. Such performance was previouslyavailable only with vacuum tubes and field-effect transistors. Ideal for spaceapplications.-Texas Instruments Inc., Solid .State Communications, McGraw-Hill,N.Y., 1966, p 291.
