INSTRUMENTATION_RECORDER

Published:2009/7/24 4:46:00 Author:Jessie | From:SeekIC

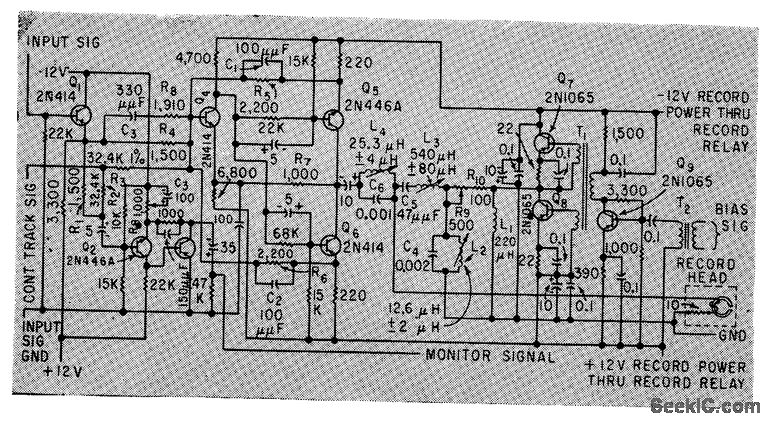

Bandpass is 250 cps to 250 kc. Uses input emitter-follower, head driver, bias amplifier, and monitor amplifier. Square-wave bias signal is supplied to each channel from master oscillator.-D. R. Steele, More Bandwidth for Magnetic Recorders, Electronics, 33:2, p 44-47.
