HIGH_FREQUENCY_COMPENSATION

Published:2009/7/24 4:36:00 Author:Jessie | From:SeekIC

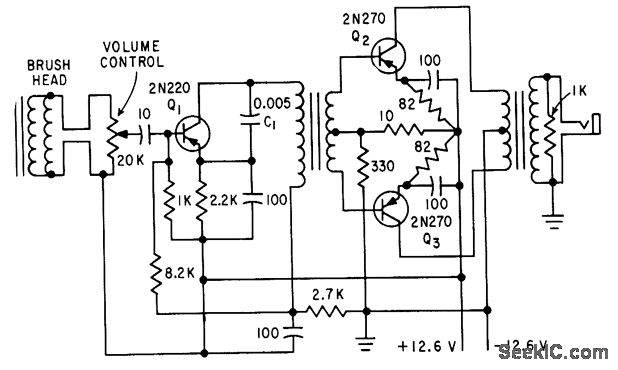

Compensates for 23 db/decade loss above 500 cps, in high-frequency response caused by spacing pickup head 1 mil from magnetic tape of vlf induction radio link.-E. A. Hanysz, J. E. Stevens, and A. Meduvsky, Communication System for Highway Traffic Control, Electronics, 33:42, p 81-83.
