Guitar Reverb Effect Version 2

Published:2012/11/21 21:07:00 Author:muriel | Keyword: Guitar, Reverb, Effect Version | From:SeekIC

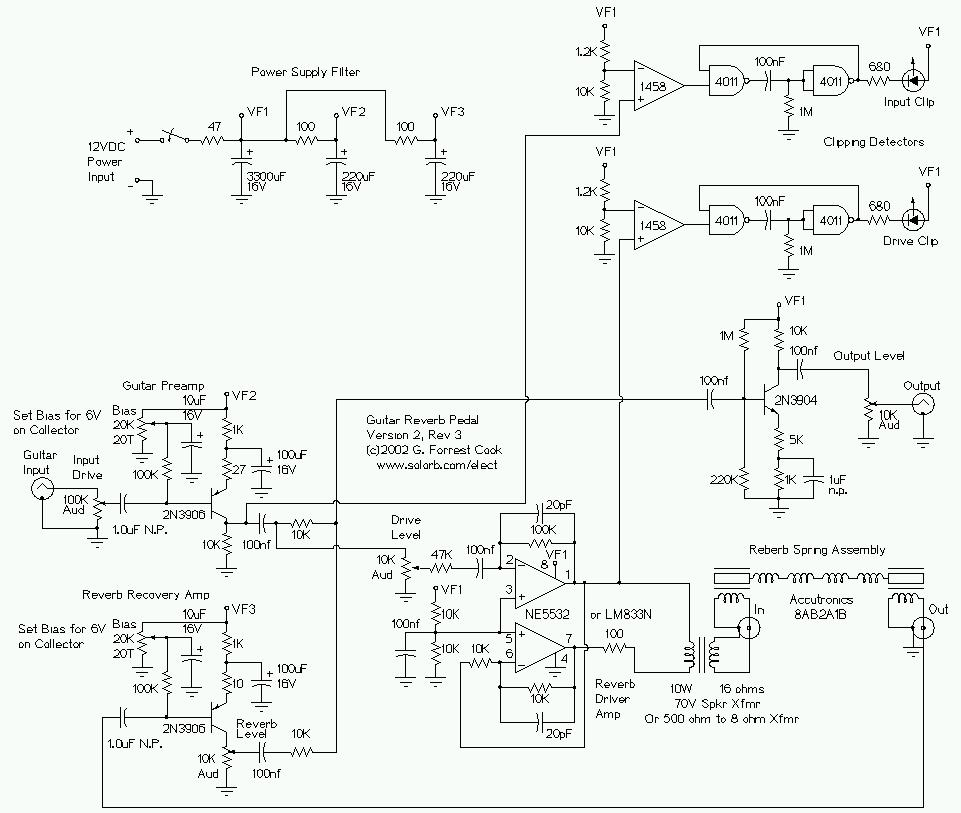

This is my second-generation guitar reverb circuit. The fidelity is much improved over the earlier design, it is suitable for use as a front-end to a guitar amplifier. This circuit features clipping indicators on the preamp and reverb recovery stages, allowing for the optimal gain settings.
