Four-input Audio Mixer Circuit

Published:2011/7/20 6:09:00 Author:Sue | Keyword: Four-input, Audio Mixer | From:SeekIC

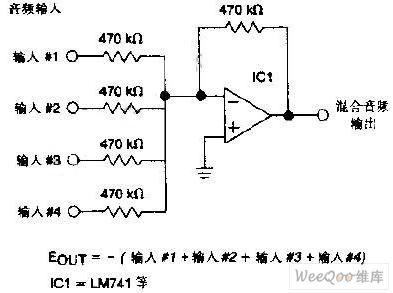

The picture shows a follower-type four-input audio mixer circuit. The circuit has four inputs. By adjusting the relative values of 470KM input resistor and 470KM feedback resistor, every input and every output will keep a gain of 1.
