F_M_STEREO_DEMODULATOR

Published:2009/7/24 3:24:00 Author:Jessie | From:SeekIC

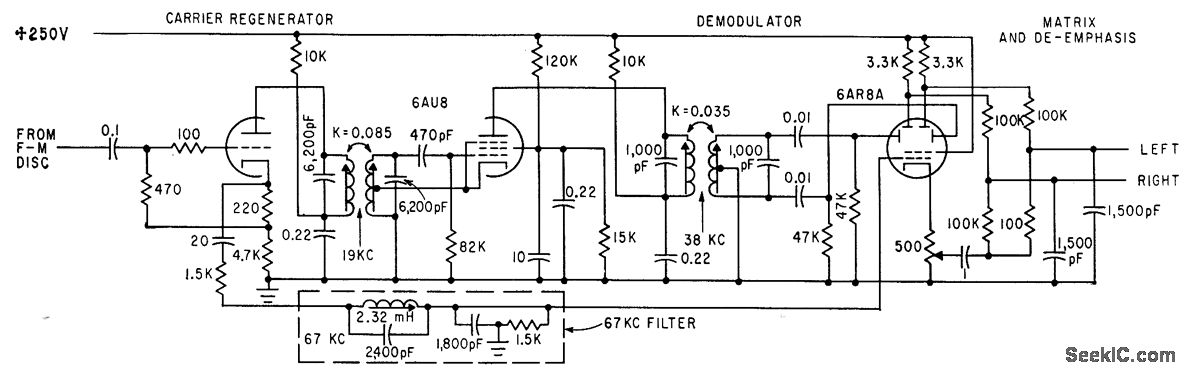

Signal from f-m discriminator is passed through 67-kc rejection fiber to control grid of 6AR8A as electronic switch, while high-amplitude 38-kc sine wave is applied to its deflection plates.One plate produces mainly left signed, and other produces mainly right signal. Cathode gives balanced L+R signal.-L. Solomon, Multiplex Adaptors for Compatible F-M Stereo Retention, Electronics, 34:33, p 45-.47.
