ELECTRONIC_METRONOME

Published:2009/6/23 22:56:00 Author:Jessie | From:SeekIC

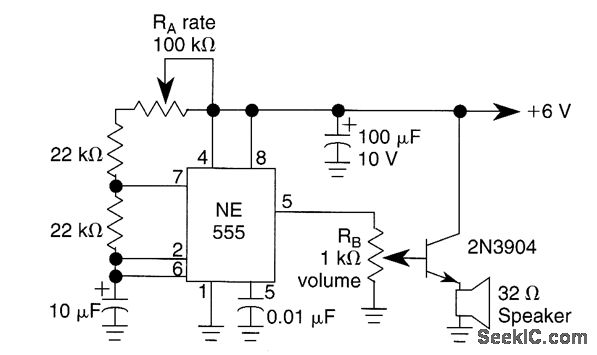

RA sets the rate while R, sets the volume of clocks in the speaker. The 555 is configured as a low frequency oscillator. The circuit is powered 2N3904 by a 6 V battery.
