Discrete_component_audio_amplifier_7_to_35_W_pnp_driver

Published:2009/7/22 4:11:00 Author:Jessie | From:SeekIC

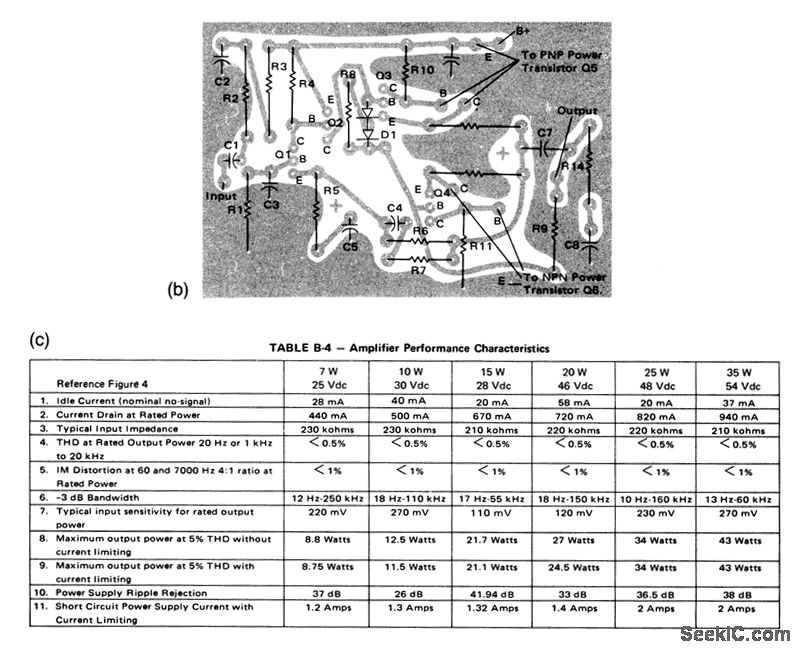

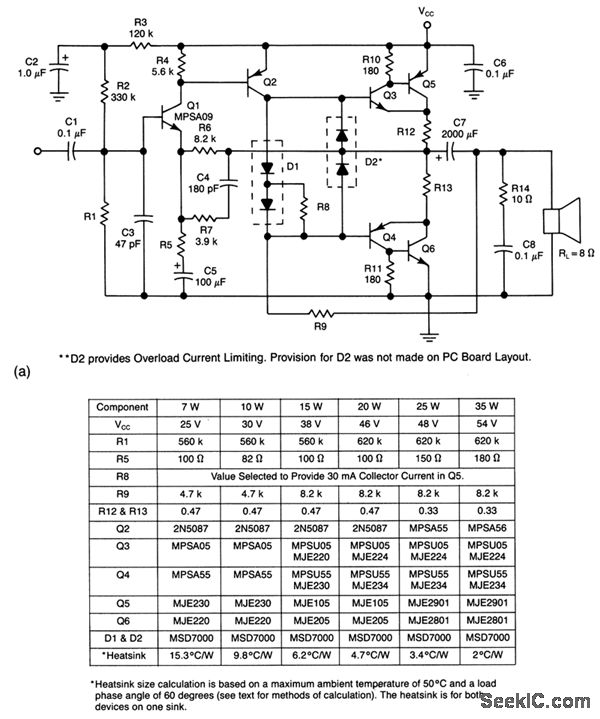

This circuit provides a 1- to 35-W output, depending on power source and component values (as shown), with overload protection. Figures 1-19B and 1-19C show the PC-board layout and performance characteristics, respectively.
