Published:2009/7/22 4:05:00 Author:Jessie | From:SeekIC

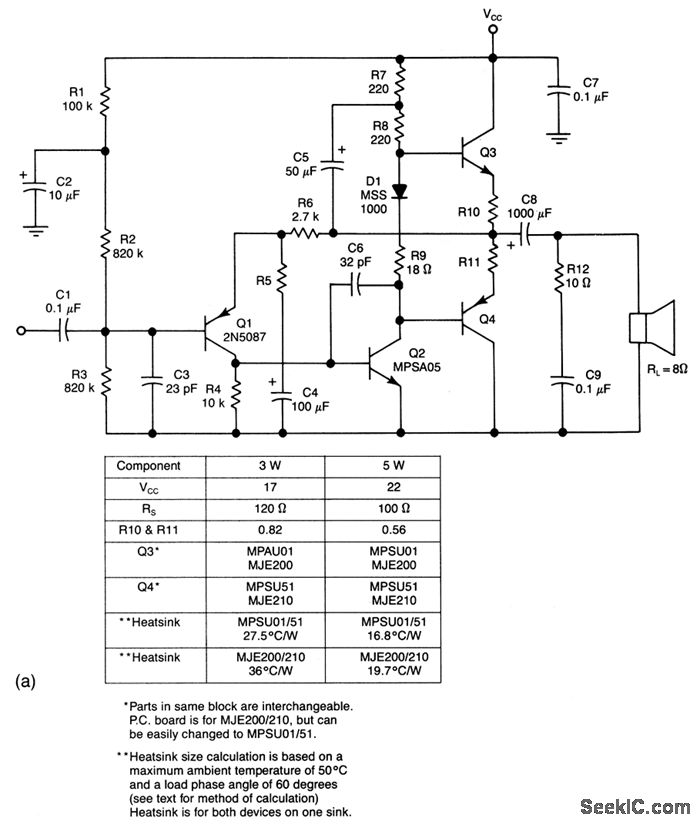

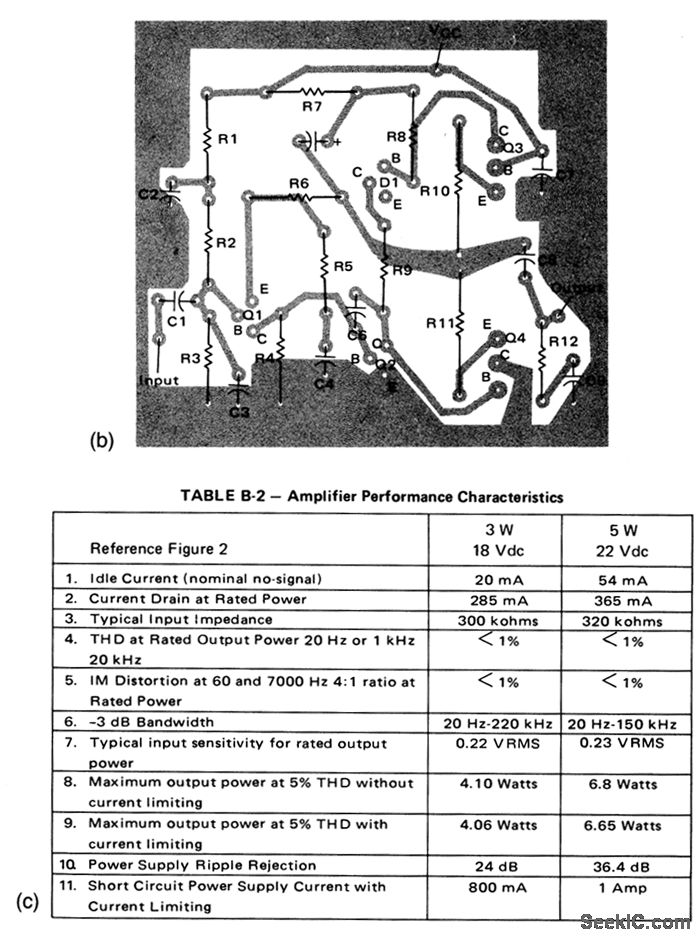

This circuit provides a 3- or 5-W output, depending on power source and component values, with an npn driver, and overload protection. Figures 1-17B and 1-17C show the PC-board layout and performance characteristics, respectiVely.
