Discrete_component_audio_amplifier_3_to_5_W

Published:2009/7/22 4:03:00 Author:Jessie | From:SeekIC

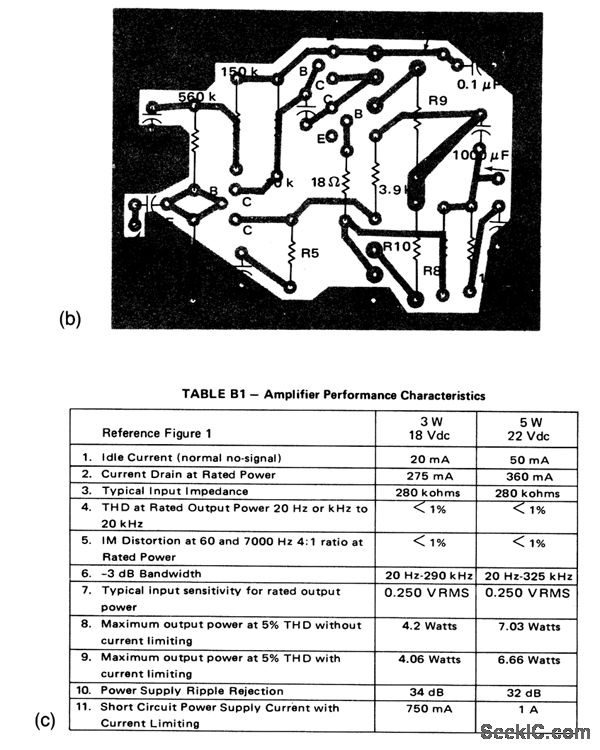

This circuit provides a 3- or 5-W output, depending on power source and component values, with a pnp driver and overload protection. Figures 1-16B and 1-16C show the PC-board layout and performance characteristics, respectively.
